PCB Material
Printed circuit boards (PCBs) form the foundation of modern electronics, from smartphones to aerospace systems. While components on them receive attention, the PCB material itself critically determine system performance, reliability, and longevity. Selection of the PCB material has a direct effect on signal integrity and thermal management, as well as the durability. Poor selections can result in signal degradation, thermal failures and even breakdowns. This is the reason why good knowledge in PCB materials is the key in successful electronic design. This guide will explain PCB material construction, common types of PCB materials, their key properties, and selection criteria, to ensure that you make effective decisions to maximize the performance of the PCB while managing the cost.

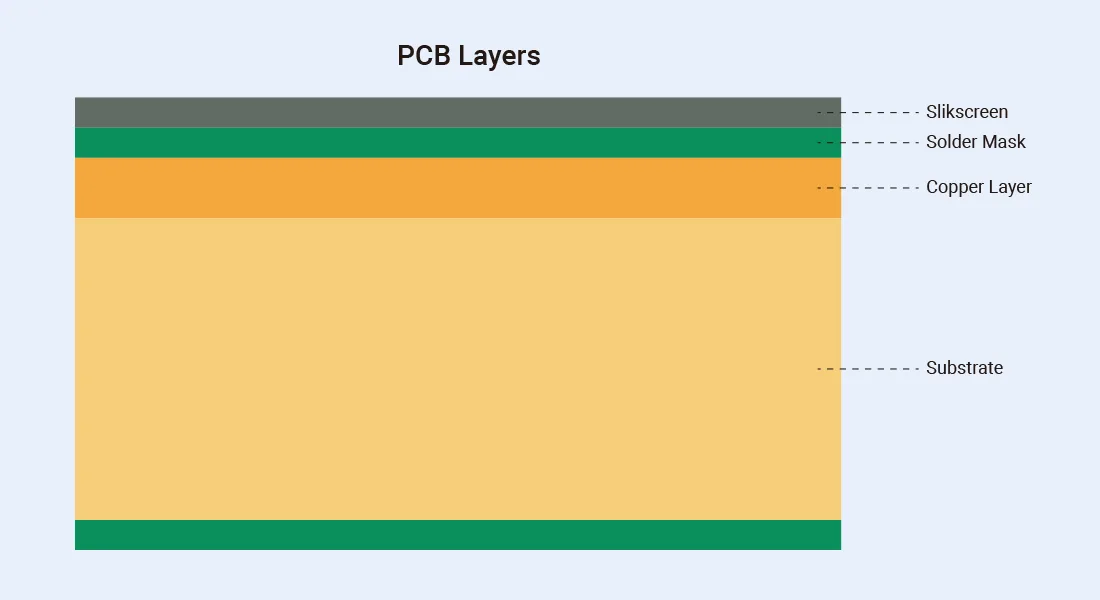

PCB Material Construction: Understanding Core Layers
A PCB consists of several important layers with different materials. And the knowledge of how these layers work and interact can help you select the appropriate materials to meet your performance, durability and cost specifications:
• Substrate: This is the base layer, which is usually made of materials like FR-4, polyimide or ceramic. It is used to supply mechanical support, as well as electrical insulation.
• Copper Layer: It is a thin sheet of copper material on a PCB that provides the electrical conductive pathways, traces, and planes to carry current and transfer signals between electronic components.
• Solder Mask: This layer is a protective coating that covers the copper traces to prevent oxidation and avoid solder bridges during assembly.
• Silkscreen: Printed on the top (and occasionally bottom) layer, the silkscreen provides component labels, logos and markings to assist with assembly and trouble-shooting.

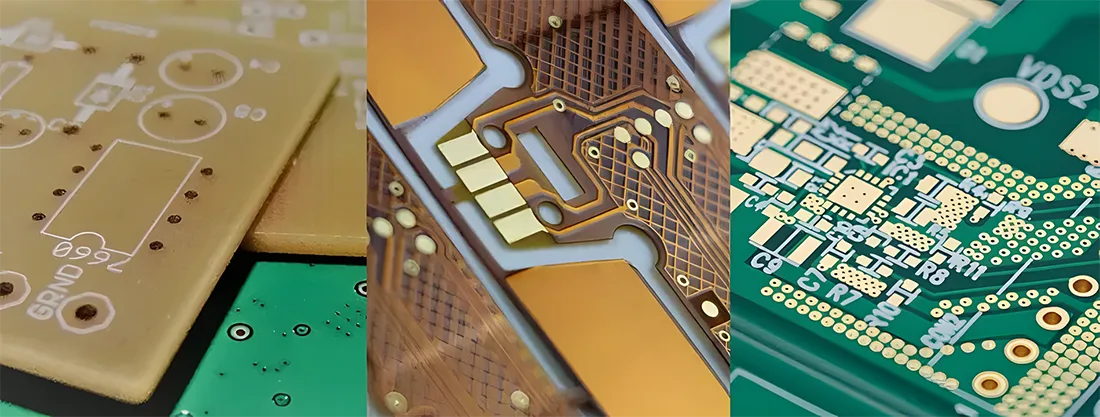

7 Common Types of PCB Materials
There are many types of PCB materials on the market to choose from, and here we will focus on some of the commonly used ones:
1. FR4
is one of the most commonly used PCB substrate materials, which is consisted of woven fiberglass cloth bonded with flame-resistant epoxy resin. FR is an abbreviation of flame retardant, and 4 is the flame-retardant material grade or type. This is a relatively cheap material with good mechanical strength, self-extinguishing flammability and low water absorption. Its glass transition temperature (Tg) ranges from 130°C to 180°C, making it suitable for use in most applications.
2. Polyimide
Polymide is highly thermally stable and has a high Tg (approximately 250–260 °C), and provides superior electrical characteristics. But compared to FR4, it absorbs much more moisture and must be baked before assembly. This material has mechanical flexibility and is commonly used in a majority of flexible and rigid-flex circuit boards.
3. Rogers
Rogers is a top brand of high-performance PCB laminates, which is mostly deployed in RF , microwaves, and high-speed digital applications. This kind of material has good performance over wide frequencies and known for stable dielectric constants and low loss. Rogers substrates are available in different formulations, although they are more expensive than FR-4 alternatives, some of them are compatible with standard PCB processes (e.g. RO4000 series).
4. PTFE (Teflon)
PTFE (Teflon) is a low-loss, low-Dk material, which is suitable in high-frequency and microwave PCBs such as 5G antennas and RF amplifiers. It is heat resistant to 250 °C and chemical resistant, but is so soft that it needs fillers for strength. PTFE is also expensive and difficult to process, requiring special surface treatment and drilling processes to fabricate reliable PCB boards.
5. Ceramic
Ceramic materials such as alumina and aluminum nitride are featured with high thermal conductivity, excellent electrical insulation, and low thermal expansion. They are expensive, and their design complexity is limited, but are well suited to LED lighting, RF power, aerospace, and military electronics where heat disposal and mechanical robustness are of paramount concern.
6. Metal
Metal core circuit boards usually use aluminum or copper as the PCB substrate materials, as they provide great heat dissipation and mechanical strength. Hence, these materials are suitable for high-power applications such as LED lighting and power converters. Although these are not appropriate in complex multilayers, they work well in thermal management where FR-4 is not effective.
7. CEM
Composite Epoxy Materials (CEM-1, CEM-3) are the low-cost PCB substrates materials, which consist of paper or glass fiber reinforced with epoxy or phenolic resin. Although they are not as capable as FR-4, which has a greater dielectric constant and moisture absorption, they are an affordably choice for simple single-sided boards and entry-level consumer electronics.
PCB Material Properties: Critical Performance Parameters
To choose the PCB substrate, it is important to learn the main material characteristics, since they directly affect the PCB performance:
Dielectric Constant (DK): It is a parameter that can measure a material’s capacity to store electrical energy. Lower DK values help to conduct signals quickly and minimize crosstalk, which positions them as a perfect match for high-frequency applications demanding high-precision timing.
Dissipation Factor (Df): Quantifies dielectric losses as electrical energy converts to heat. And lower Df values means better signal integrity by providing minimal power loss, which is key for high-speed digital and RF circuits.
Thermal Conductivity (k): This property is used to define the effectiveness of heat transfer through the material. The higher the value, the better the heat dissipation. This helps to avoid thermal damage and maintain consistent performance in power applications.
Glass Transition Temperature (Tg): It refers to the temperature that materials turn from rigid to soft state. Higher Tg values indicate dimensional stability during soldering operations even in higher temperature operation, with no warpage and delamination.
Coefficient of Thermal Expansion (CTE): Measures dimensional change with temperature variations. Lower CTE yields lower stress on the solder joints and component connections, and hence enhances reliability through thermal cycling in extreme conditions.
Moisture Absorption: This parameter shows the amount of water that a material absorb from ambient conditions. Reduced absorption prevents dimensional changes and electrical degradation of properties as well as delamination during manufacturing process and operation.
PCB Material Comparison Chart
| Material | Dk (1GHz) | Df (1GHz) | Tg(°C) | Thermal Conductivity (W/m·K) |
| FR4 | 4.2–4.7 | 0.015–0.025 | 130-180 | 0.25–0.3 |
| Polyimide | 3.9–4.3 | 0.004–0.02 | 200–260 | 0.2–0.4 |
| Rogers | 3.0–3.5 | 0.003–0.004 | >280 | 0.62–1.0 |
| PTFE (Teflon) | 2.1–2.6 | 0.0005–0.002 | >260 | 0.25–0.5 |
| Ceramic | 6-10 | ≤0.001–0.002 | >800 | 20–180 |
| Metal | 4.0–7.0 | 0.02–0.04 | ~130–180 | 1.0–5.0 |
| CEM-1 / CEM-3 | 4.5–5.0 | 0.03–0.05 | 110–130 | 0.2–0.3 |
Factors to Consider When Selecting PCB Board Materials
When you are choosing the exact PCB material, many factors should be considered that have a direct effect on the performance, manufacturability, and the cost of your product. The main aspects to consider are as follows:
Mechanical strength: PCB materials should endure physical forces during production and operation. Factors to consider are flexibility or rigidity, tensile strength, and the number of layers. Proper mechanical properties guarantee the reliability and long life in a challenging application.
Electrical signal integrity: It is a primary concern when there is high-speed data transmission. Badly managed signal integrity may result in undesirable effects, such as crosstalk, signal loss, and electromagnetic interferences (EMI). Selecting a PCB material that provides good signal integrity will make the signals clear and accurate, which minimizes chances of data loss and communication errors.
Cost of materials: FR-4 is economical, while polyimide and PTFE are expensive although they have excellent performance. Look at long-term cost of ownership – additional material costs up front can be offset when there is higher reliability, lower maintenance costs and better performance in harsh applications.
Manufacturing Process: When selecting PCB materials, we should also consider their manufacturability. For example, FR-4 is easy to handle and has a broad availability, whereas specialized materials often require special procedures. Using the right material brings about efficient production, controlled costs and quality maintenance.
Regulations and Industry Standards: PCB materials should comply with key standards such as IPC and RoHS that regulate quality, environmental issues and safety. These requirements depend on the industry and region, and specific certifications are required market entry. It’s critical to select compliant materials that fit the standards of the target markets.
Intended Applications: The demands of the applications are major factors in the selection of material. Consumer electronics use cost-effective FR-4, the automotive industry wants high reliability polyimide for thermal stability, and the aerospace industry needs PTFE because of its extreme service temperature and low loss.
