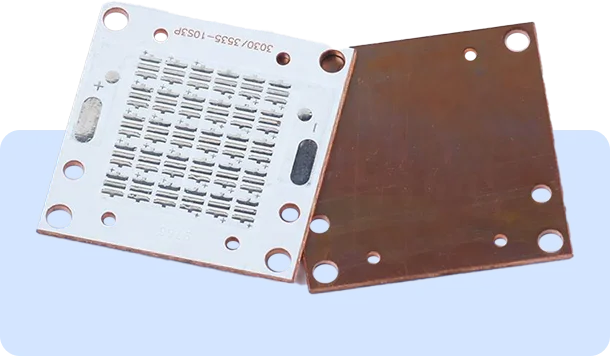

Metal Core PCB
Reliable and precise metal core PCB fabrication for high-performance thermal management
MOKOPCB- Your Trusted Metal Core PCB Manufacturer
MOKOPCB is a manufacturer specialized in making high-quality metal core PCBs that offer top level thermal management for your most demanding applications. With leading production capabilities and nearly 20-year experience, we deliver metal core PCBs with superior quality and consistent performance. No matter if it’s metal core pcb prototype or full-scale production, MOKO provides reliable metal core PCB solutions with quick delivery times.
Our Metal Core PCB Fabrication Capabilities
| Number of Layers | Up to 18 layers |
| Minimum thickness | 0.1mm |
| Min. Board Size | 10*10mm |
| Max. Board Size | 570*1200mm |
| PCB Size Tolerance | ±0.2-0.3mm |
| Material Types | Aaluminum, copper, and iron/steel alloys |
| Minimum BGA Pad Size | 7mil |
| Thermal Conductivity | 1 - 9 W/mK |
| Operating Temperature | Up to 400°C |
| Copper Thickness | 0.5-5OZ |
| Surface Finishes | HASL, ENIG, OSP, and others |
| Certifications | UL , IPC-6012, RoHS, ISO 9001, ISO14001 |
Why Choose MOKOPCB?
One-Stop Services
We provide a full range of PCB solutions which includes design services alongside fabrication and sourcing and delivery to save your time and expenses.
Strict Quality Control
MOKOPCB implements advanced PCB inspection techniques and follows the ISO standards to make sure that all boards fulfill strict reliability and quality requirements.
Manufacturing Expertise
MOKOPCB’s seasoned engineers and advanced facilities ensure reliable production of high-quality PCBs across diverse materials, layers, and complexities.
Production Flexibility
Our company accepts urgent orders together with customized specifications and fluctuating order quantities while maintaining quality standards and delivery timeliness.
Testing and Inspection Equipment at MOKOPCB
Applications of Metal Core PCB

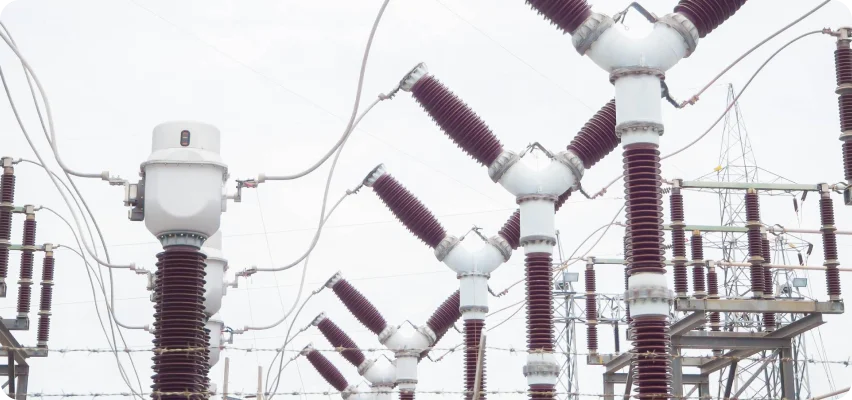

Power Electronics

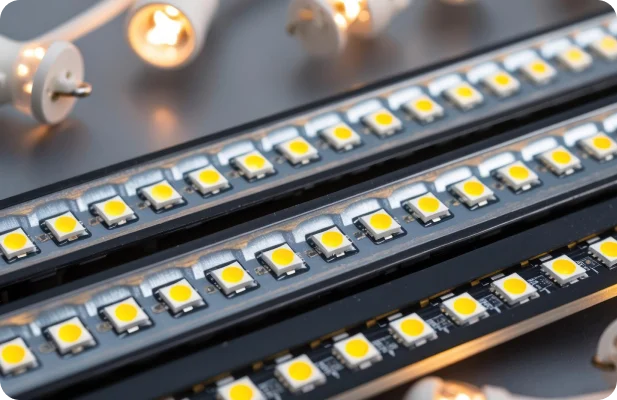

LED Lighting
Automotive Electronics

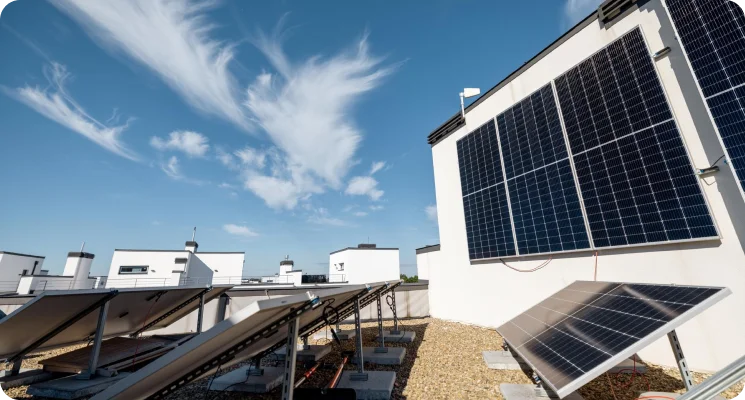

Solar Power Systems
Explore All Metal Core PCB
Frequently Asked Questions
What is a metal core PCB?
A metal core PCB, also known as MCPCB, is a kind of circuit board that use a metal—typically aluminum or copper—as the substrate material, instead of the traditional FR4
What are the advantages of metal core PCBs?
Metal core circuit boards have better thermal conductivity, enhanced mechanical strength, more stable dimensional strength and better heat heat dissipation than traditional PCB boards.
What base metals does MOKOPCB offer for metal core printed circuit board?
Based on your application requirement, we offer aluminum (most common), copper (has highest thermal conductivity) and iron/steel alloys.
Aluminum vs Copper core - which should I choose?
It depends on your application needs. Aluminum is cost-effective compared with copper, however, copper has better thermal conductivity and can be used in extreme thermal applications.
Can MOKOPCB handle complex metal core designs?
Of course. As a seasoned metal core PCB supplier, we can fabricate metal core circuit boards with multi-layer, a special surface finish and any other special feature you require.
What is the lead time for metal core PCB fabrication?
Generally, we can deliver metal core PCBs from 1-2 weeks, which is decided by the complexity and order quantity. In addition, we provide expedited service for urgent orders.
