RF & Microwave PCB
Precision-Engineered RF & Microwave PCB Solutions for Superior Signal Integrity and Performance

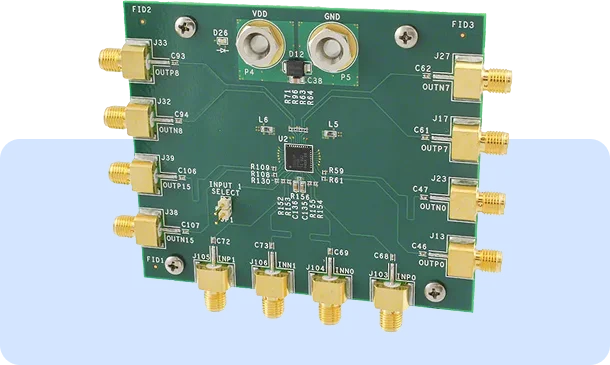

MOKOPCB- A Leading RF & Microwave PCB Manufacturer
From high-frequency communication devices to high-performance radar systems, we provide RF & microwave PCBs with excellent signal integrity and low loss. As a seasoned RF PCB supplier, we use high quality and low-loss materials such as Rogers, Taconic and Arlon with controlled impedance, precise stackups and cutting-edge manufacturing techniques in order to achieve optimal performance at frequencies up to 100 GHz.
Our RF & Microwave PCB Fabrication Capabilities
| Number of Layers | Up to 18 layers |
| Minimum thickness | 0.1mm |
| Min. Board Size | 10*10mm |
| Max. Board Size | 570*1200mm |
| PCB Size Tolerance | ±0.2-0.3mm |
| Material Types | Rogers, PTFE (Teflon), Taconic and hybrid substrates |
| Minimum BGA Pad Size | 7mil |
| Minimum Line Width | 4mil |
| Frequency Range | Up to 100 GHz |
| Copper Thickness | 0.5-5OZ |
| Surface Finishes | HASL, ENIG, OSP, and others |
| Certifications | UL , IPC-6012, RoHS, ISO 9001, ISO14001 |
Why Choose MOKOPCB?
One-Stop Services
We provide a full range of PCB solutions which includes design services alongside fabrication and sourcing and delivery to save your time and expenses.
Strict Quality Control
MOKOPCB implements advanced PCB inspection techniques and follows the ISO standards to make sure that all boards fulfill strict reliability and quality requirements.
Manufacturing Expertise
MOKOPCB’s seasoned engineers and advanced facilities ensure reliable production of high-quality PCBs across diverse materials, layers, and complexities.
Production Flexibility
Our company accepts urgent orders together with customized specifications and fluctuating order quantities while maintaining quality standards and delivery timeliness.
Testing and Inspection Equipment at MOKOPCB
Applications of RF & Microwave PCB

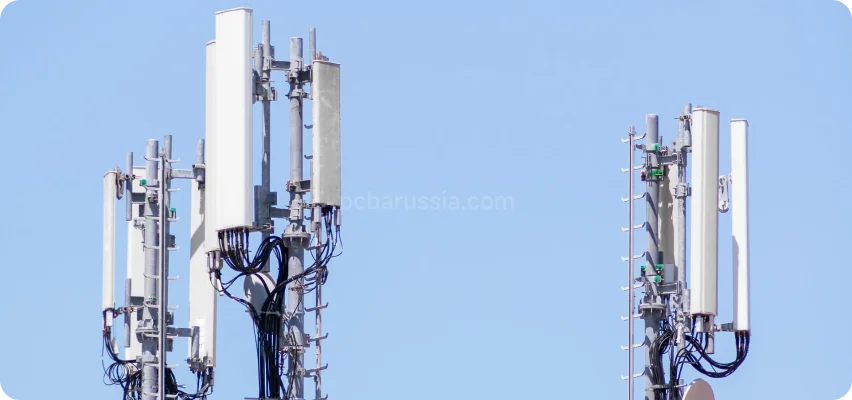

5G & Telecom Infrastructure
Satellite Communications
Radar Systems
GPS Modules
Explore All RF & Microwave PCB
Frequently Asked Questions
What is an RF & Microwave PCB?
An RF & Microwave PCB is a printed circuit board that is used for high-frequency applications, typically from 500 MHz up to 100 Ghz.
What makes RF & Microwave PCBs distinct from regular PCBs?
Unlike standard PCBs, RF & Microwave PCBs must be made of low-loss materials such as PTFE or Rogers. Their manufacturing tolerances are tighter, and design rules specific to high-frequency signal management are used. They also require better impedance control and improved thermal management.
What materials are commonly used for RF & Microwave PCBs?
Materials such as Rogers, PTFE (Teflon), Taconic and hybrid substrates are widely used because of their excellent dielectric properties and the minimal signal loss at a high frequency.
How does MOKOPCB ensure impedance control for RF PCBs?
We do this through the use of specific PCB stack-up design, controlled trace widths, advanced simulation tools and stringent manufacturing processes to ensure consistent impedance throughout the RF circuitry.
Can you support multi-layer RF & Microwave PCB fabrication?
Yes, we can produce multi-layer RF & Microwave PCBs with up to 18 layers.
Do you offer RF PCB prototyping services?
Yes, we do offer fast RF PCB prototyping with lead times as short as 3-5 days so that you can test and verify your high-frequency designs before scaling up to mass production.
