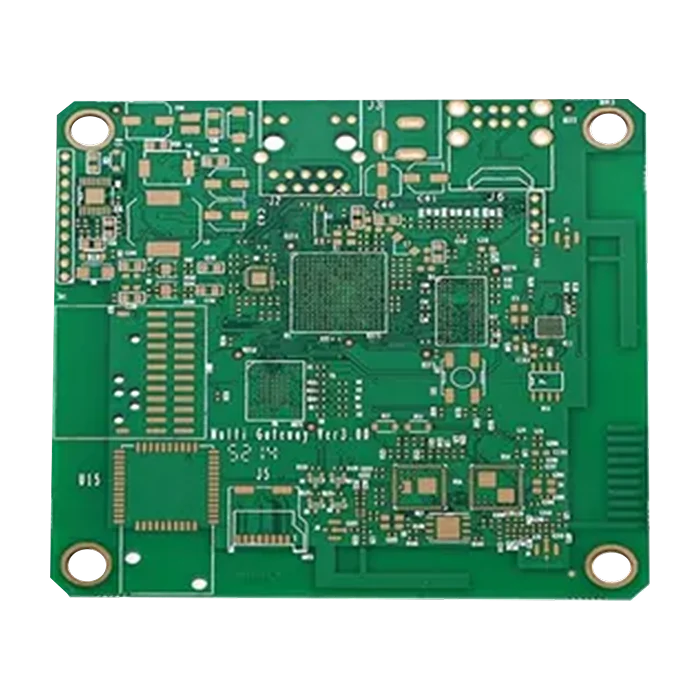

1.0mm thickness FR4 PCB

$26.50

Product Description

FR4 is a composite material that provides excellent electrical insulation properties, mechanical strength, and resistance to moisture absorption. This 1.0mm thickness FR4 PCB manufactured by MOKOPCB provides a reliable and durable solution for a variety of electronic applications. Contact us to start your next FR4 PCB project.

Shipping

Shipping fee and delivery date to be negotiated. Send inquiry for more details.

Payments and Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Easy Return & Refund

Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.

Layer Counts	4L
Base Material	FR-4
Board Thickness(mm)	1.0
Max board size(mm)	570*850
PCB size tolerance	±0.3mm
Min. Hole Size	0.3mm
Min. Line Width	5mil
Copper Weight	1oz
Surface Finish	HASL
Certificate	UL, RoHS, ISO, and REACH

Add a review

1.0mm thickness FR4 PCB

Rating*

0/5

* Rating is required

Your review

* Review is required

Name

* Name is required

* Email is required

Add photos or video to your review

I have read and agree to the Terms and Conditions and Privacy Policy.

* Please tick the checkbox to proceed

* Please confirm that you are not a robot

0.0

Based on 0 reviews

5 star		0%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

0 of 0 reviews

Sorry, no reviews match your current selections

Questions & Answers

1.What are the smallest and largest PCB sizes you can produce?

We can manufacture PCBs as small as 10×10mm and as large as 570×1200mm.

2.How does the 1.0mm thickness affect the FR4 PCB’s flexibility?

With 1.0mm thickness, these FR4 PCBs offer good mechanical strength. However, this also means they lack flexibility and are not suitable for applications that require bending or dynamic movement.

3.What thickness options are available for 1.0mm thickness FR4 PCBs?

FR4 PCBs, provided with MOKOPCB, are available in a wide range of thicknesses. Standard thicknesses include 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm, but custom thicknesses can be manufactured upon request.

4.What surface finishes are compatible with FR4 PCBs?

FR4 PCBs can accommodate a variety of surface finishes, including HASL, ENIG, ENEPIG, OSP, Immersion Silver, and Immersion Tin. The choice depends on the application, shelf life, assembly method, etc.

5.What are the main limitations of FR4 PCBs?

FR4 PCBs are not suitable for high-frequency designs, extreme thermal environments, and flexible PCB designs.
