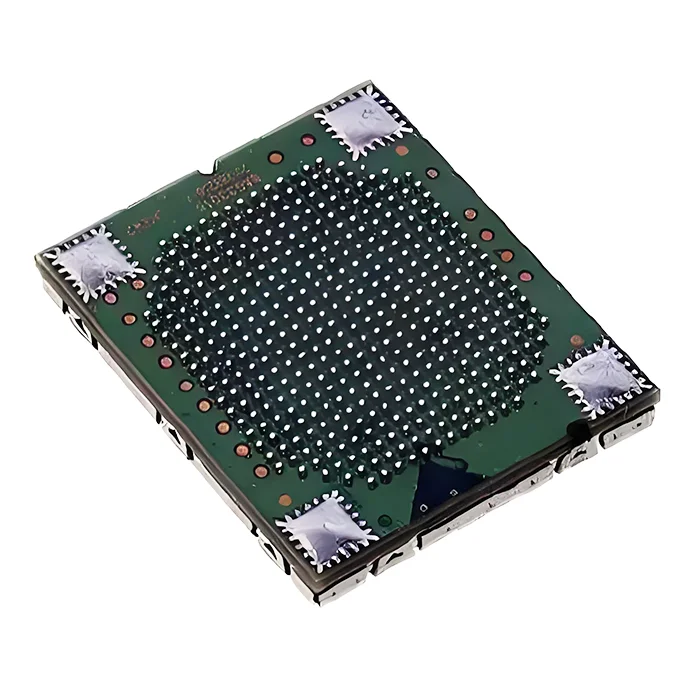

BGA PCB Board for Medical Equipment
$132.90
BGA(Ball Grid Array) PCB is a surface-mounted packaging used for integrated circuits. The high pin density allows multiple short connections, improving heat dissipation and signal integrity and making it ideal for compact and high-performance devices. BGA PCB board for medical equipment is a typical example.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 10L |
| Base Material | FR4 |
| Board Thickness(mm) | 1.6 |
| Max board size(mm) | 570*670mm |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 0.4mil |
| Copper Weight | 2oz |
| Surface Finish | ENIG |
| Certificate | UL, IPC-6012, RoHS, ISO 9001, ISO14001 |
BGA PCB Board for Medical Equipment
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1. Where does MOKOPCB ship from and to?
We ship globally from our facilities in Shenzhen, China.
2. What is the maximum board size for a 6-layer PCB?
The maximum board size is 570*670mm for 6- and over 6-layer PCBs.
3. What is the minimum hole size MOKOPCB can drill?
Our advanced drilling technologies support a minimum of 0.15mm holes.
4. What are the differences between the BGA PCB board and traditional integrated circuits?
Compared to traditional integrated circuit(IC) packages, BGA PCBs use an array of solder balls on the underside of the chip for connections instead of pins or leads. This endows BGA PCBs with higher pin density and greater electrical performance, making them more suitable for compact and high-speed medical devices.
5. What surface finish is selectable for BGA pads in medical applications?
Besides the most preferred ENIG, OSP, Immersion Silver, and Immersion Tin are also good choices for BGA PCBs in medical applications.
6. What are the key mechanical properties needed for BGA PCBs in medical use?
BGA PCBs in medical use require mechanical strength, dimensional stability, and thermal resistance to resist warping and cracking and maintain solder joint reliability.
