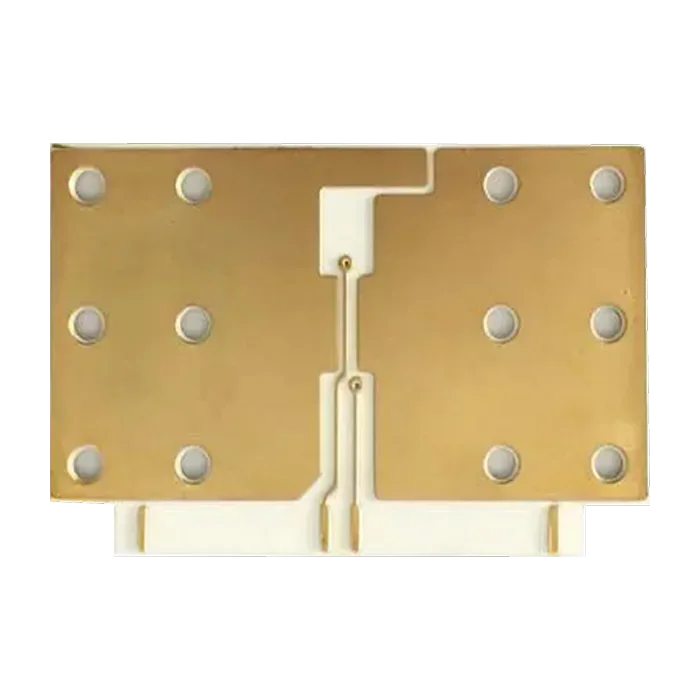

Ceramic PCB board
$72.90
Ceramic PCB boards represent a type of high-performance PCB that uses ceramic materials instead of conventional FR-4 materials. These advanced ceramic boards work well in extreme environments where standard materials fail. They have excellent thermal conductivity, mechanical strength, and chemical resistance. These properties allow ceramic circuit boards to have a reliable performance under harsh conditions.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 2L |
| Base Material | Aluminum nitride |
| Board Thickness(mm) | 1.0 |
| Max board size(mm) | 300*300 |
| PCB size tolerance | ±0.3mm |
| Min. Hole Size | 0.3mm |
| Min. Line Width | 6mil |
| Copper Weight | 1oz |
| Surface Finish | HASL |
| Certificate | UL, RoHS, ISO, and REACH |
Ceramic PCB board
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.What are the minimum and maximum PCB sizes you support?
Our minimum board size is 10*10mm, and the maximum we can produce is 570*1200mm.
2.Which materials are commonly used in ceramic circuit boards?
When choosing ceramic materials, you should pay attention to two properties: thermal conductivity and CTE. Common materials include Aluminum Oxide (Al₂O₃), Aluminum Nitride (AIN), Beryllium Oxide (BeO), and Silicon Carbide (SiC).
3.What are the different types of ceramic PCB boards?
According to the manufacturing technical, ceramic PCB boards can be divided into several types.
▪High-temperature co-fired ceramic PCB
▪Low-temperature co-fired ceramic PCB
▪Thick film ceramic PCB
▪Thin film ceramic PCB
4.Can the ceramic PCB be used for LED lighting?
Thanks to their excellent thermal conductivity, ceramic Ceramic PCB boards are commonly used in LED lighting. They can efficiently dissipate the heat produced by LEDs, enhancing both performance and lifespan.
5.How do ceramic PCBs dissipate heat?
Ceramic circuit boards dissipate heat effectively through their high thermal conductivity materials, like aluminum oxide or aluminum nitride. These ceramic PCBs can spread and release heat directly through the board without using additional heat sinks.
