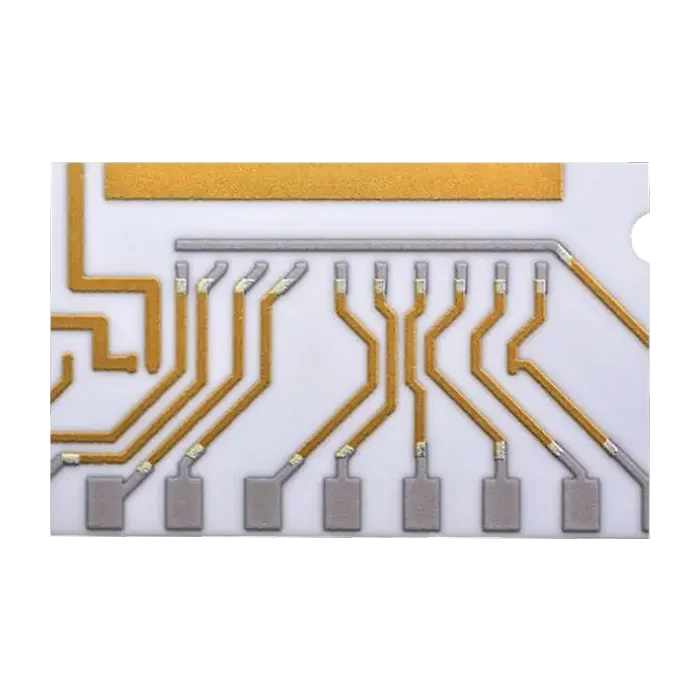

China ceramic core PCB
$65.80
China ceramic core PCB plays a crucial role in modern electronic devices and is available for versatile uses. It offers key advantages such as excellent chemical resistance and the ability to withstand high temperatures. This means that ceramic PCBs can withstand harsh compounds and operate at extreme temperatures, which is very important for applications requiring high durability and reliability. If you are looking for a PCB manufacturer in China for your ceramic core PCB project, MOKOPCB is a trustworthy choice.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 2L |
| Base Material | Alumina |
| Board Thickness(mm) | 1.2 |
| Max board size(mm) | 300*300 |
| PCB size tolerance | ±0.3mm |
| Min. Hole Size | 0.3mm |
| Min. Line Width | 4mil |
| Copper Weight | 2oz |
| Surface Finish | HASL |
| Certificate | UL, RoHS, ISO, and REACH |
China ceramic core PCB
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.Can MOKOPCB customize PCBs according to specific requirements?
Yes! We offer customized services for PCBs to meet all your requirements. This includes PCB size, thickness, materials, layer count, etc. We collaborate closely with our clients to meet their exact requirements.
2.Can MOKOPCB assist in the design phase?
Of course! Our experienced team supports PCB design and layout, helping to optimize your project for both manufacturability and performance.
3.Why is the ceramic PCB surface easily yellow during the manufacturing process?
Ceramic PCBs may have yellowing on their surface, which does not affect functionality but may look unsightly. Yellowing is usually caused by the high-temperature sintering process.
4.What are the differences between Ceramic PCB vs. Aluminum PCB?
The main differences between them are materials used and structure. Ceramic core circuit boards use ceramic materials with excellent insulation, so they don’t need an extra insulating layer. Aluminum PCBs have a basic structure: an insulating layer, copper layers, and an aluminum core.
5.What types of manufacturing technologies are used for China ceramic core PCBs?
Ceramic core PCBs are mainly manufactured using four different technologies:
▪HTCC (High-Temperature Co-fired Ceramic)
▪LTCC (Low-Temperature Co-fired Ceramic)
▪DBC (Direct Bonded Copper)
▪DPC (Direct Plated Copper)
