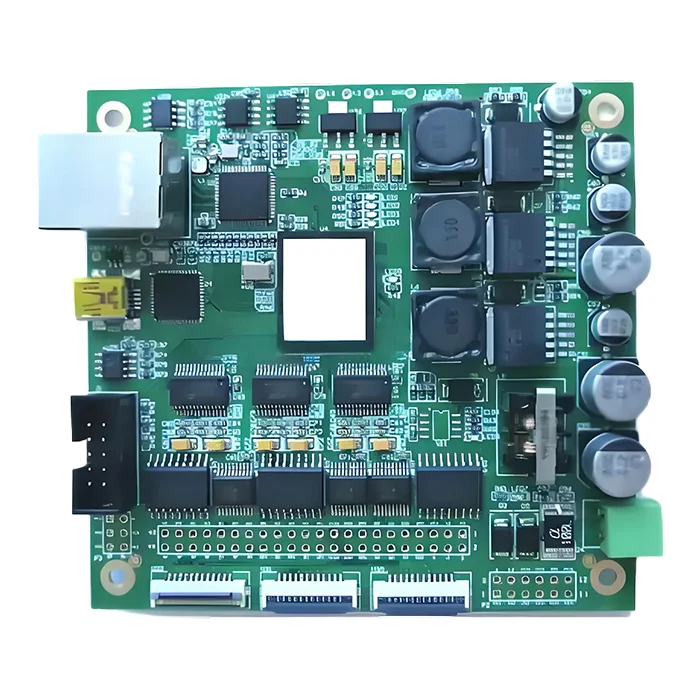

Customized 6 Layer PCB for Medical Device
$88.90
Customized 6-layer PCB for medical device is specifically tailored for demanding medical environments to meet strict regulatory, thermal, and thermal performance requirements. With exceptional signal integrity, EMI shielding, and space-saving features, this 6-layer PCB is preferred for complex medical systems.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 6L |
| Base Material | Rogers |
| Board Thickness(mm) | 1.6 |
| Max board size(mm) | 570*670 |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 0.4mil |
| Copper Weight | 1oz |
| Surface Finish | ENIG |
| Certificate | UL, IPC-6012, RoHS, ISO 9001, ISO14001, REACH |
Customized 6 Layer PCB for Medical Device
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1. Can the 6-layer PCB be customized for different medical device shapes and sizes?
Yes, our 6-layer medical PCB can be customized in terms of shape and size to fit different medical devices. We can tailor the board design based on your specific requirements. Welcome to contact us!
2. What are the advantages of using a 6-layer PCB in medical devices?
6-layer medical PCB strikes a balance between complexity, performance, and cost. Compared to simpler 2- or 4-layer boards, 6-layer PCB provides greater signal integrity and reduced EMI. On the other hand, while 8- to 12-layer PCBs offer higher performance and denser integration, they are pricer than 6-layer PCBs.
3. What kind of specific medical devices prefer a 6-layer PCB?
Devices like handheld diagnostic tools, portable patient monitors, and wearable health trackers usually use 6-layer PCB because it provides sound performance with balanced complexity, size, and cost-effeciency.
4. Why is the ENIG surface finish ideal for 6-layer medical PCBs?
ENIG(Electroless Nickel Immersion Gold) is characterized by excellent surface planarity, corrosion resistance, and solderability. Those features are fundamental for fin-pitch components and ensure stable electrical connections for sensitive medical electronics.
5. Can you add conformal coating or protective layers for the medical PCBs?
Yes, we support conformal coatings and other protective layers like silicon and acrylic to protect the board from moisture and chemicals.
6. Do you support UL and RoHS-compliant materials?
Yes, we use UL-certified and RoHS-compliant materials to protect the environment and meet regulatory compliance. Certifications can be provided upon request.
