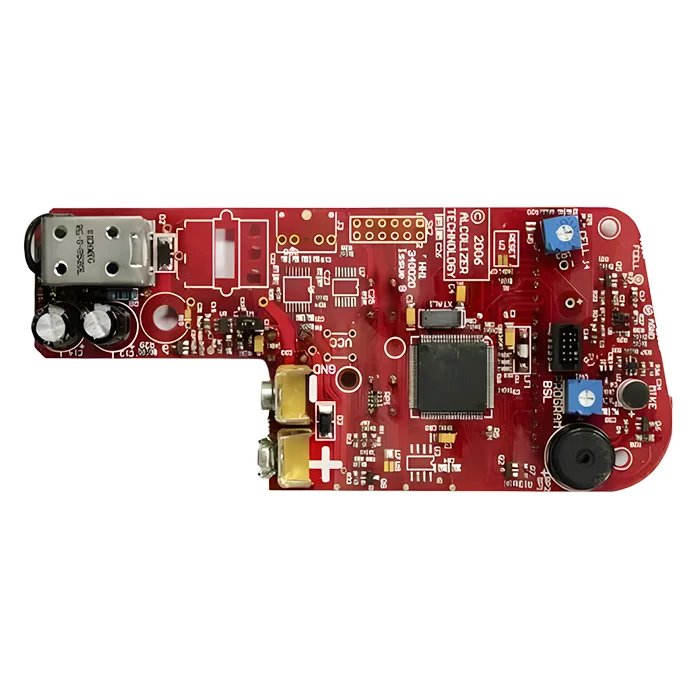

Customized Medical Use FR4 PCB Board
$45.90
Customized medical use FR4 PCB board is stringently tailored for medical devices, such as diagnostic tools, monitoring systems, wearable health devices, and other medical devices. Endowing the medical PCB with trusted mechanical strength, electrical insulation, thermal resistance, and cost-effectiveness, FR4 material is the ideal choice for medical applications.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 4L |
| Base Material | High-Tg FR4 |
| Board Thickness(mm) | 1.2mm |
| Max board size(mm) | 570*850mm |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 0.4mil |
| Copper Weight | 1oz |
| Surface Finish | ENIG |
| Certificate | UL, IPC-6012, RoHS, ISO 9001, ISO14001, REACH |
Customized Medical Use FR4 PCB Board
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.What is the maximum number of layers you can manufacture for medical FR4 PCBs?
We can manufacture up to 40 layers of medical FR4 PCB.
2.Why use FR4 over other materials for medical PCBs?
FR4 is widely used in medical PCBs because it achieves a great balance of mechanical strength and thermal stability. On the basis of satisfying the performance requirements of most medical devices, FR4 is more affordable and easier to process than ceramics or Rogers.
3.What solder mask type and color do you provide for FR4 medical PCBs?
We provide high-quality, halogen-free, RoHS-compliant solder masks for medical PCBs, generally in green. We also offer white, black, blue, red, or other custom colors. It mainly depends on your branding or visibility requirements; for example, the white solder mask is the primary choice for medical cosmetic devices.
4. Can you integrate rigid-flex sections into medical PCBs?
Yes, we are capable of fabricating rigid-flex PCBs with the combination of rigid FR4 sections and flexible polyimide layers. Such rigid-flex PCB improves reliability with reduced solder joints and connectors, making it useful for wearable and portable medical devices like LED face masks.
5. What types of medical devices commonly use FR4 PCBs?
The typical FR4 medical PCBs include LED light therapy makes, ultrasonic facial cleansers, RF and EMS beauty devices, laser therapy tools, vital sign monitors, and so on.
6. What services do you offer for customized PCB orders?
We provide comprehensive services for customized PCB orders, including PCB designs, multilayer board fabrication, via designs, component sourcing, and other services. From design to prototype and from mass production to shipping, we ensure a one-stop solution for you.
7. What quality certifications do you hold?
We have certified UL, ISO, RoHS, IPC, etc.
