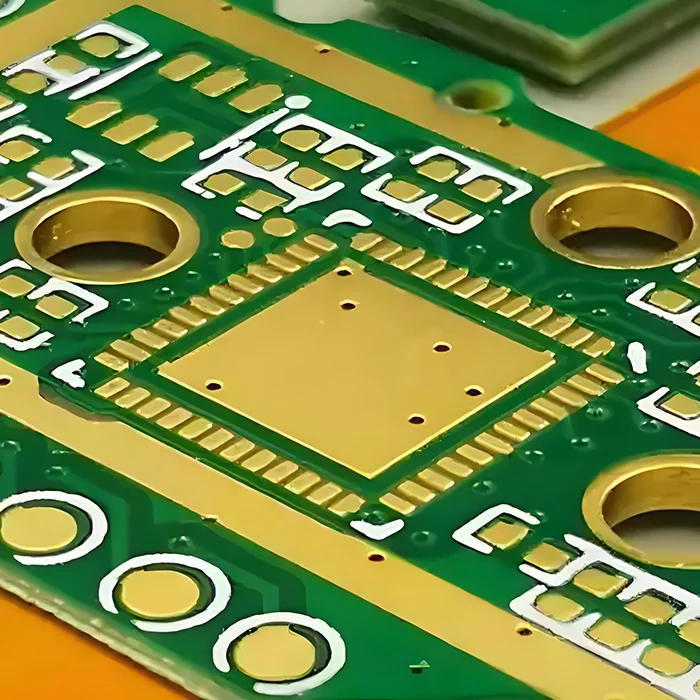

Flexible Multilayer PCB
$39.90
It features excellent circuit density to maintain flexibility and multilayer signal paths to ensure reliability and performance under dynamic mechanical stress. It’s well-designed for advanced electronic applications, like medical and automotive devices, to deliver both high performance and space efficiency.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 4L |
| Base Material | Polymide |
| Board Thickness(mm) | 0.3mm |
| Max board size(mm) | 570*850mm |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.1mm |
| Min. Line Width | 4mil |
| Copper Weight | 2oz |
| Surface Finish | ENIG |
| Certificate | UL, RoHS, ISO, ISO9001, ISO13485, IPC610, and REACH |
Flexible Multilayer PCB
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1. How many layer counts can you manufacture for flexible multilayer PCBs?
We can manufacture 2-18 layers for high-precision flexible printed circuit boards.
2. What industries commonly use flexible multilayer PCBs?
A flexible multilayer PCB is used in a wide range of industries, such as consumer electronics, medical, automotive, defense, telecom, and many other industries.
3. How thin can the board be made?
We are capable of fabricating 0.1 mm-thick board for flexible boards. Among them, we produce a minimum thickness of 0.3mm and 0.8mm for 4-layer and 10-layer flexible boards.
4. Can flexible multilayer PCBs reduce the weight of my product?
Yes. Flexible PCBs eliminate bulky connectors and heavy wiring harnesses to help reduce both the size and the weight of the product, making it especially useful for compact and light devices like wearable GPS locators.
5. What layer count do you recommend for consumer electronics?
For most applications, 6-8 layer counts are recommended because they balance circuit density, signal integrity, and cost efficiency
6. Are flexible multilayer PCBs resistant to moisture and chemicals?
Yes, Polymide structured flexible PCBs feature both robust chemical and moisture resistance, the same as those rigid ones. We can also add protective layers, like conformal layers, to help operate normally in harsh environments.
