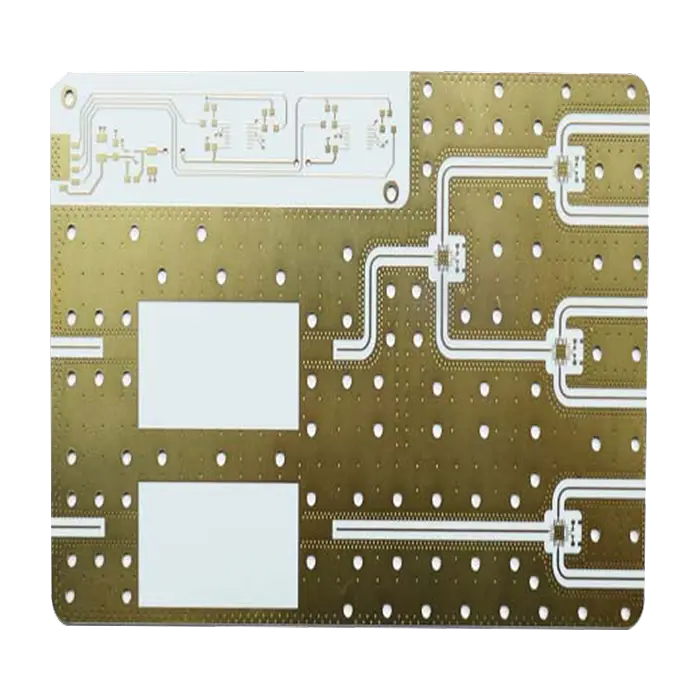

Gold Plating Rogers 4003C PCB
$82.50
Rogers 4003C is a woven glass-reinforced hydrocarbon/ceramic laminate developed by Rogers Corporation and can be used for high-speed signal transmission and RF applications. Most times, circuit pads are plated with an ENIG finish to support good soldering and strong electrical connections in harsh conditions. RO4003C addresses the needs of high-frequency and high-speed circuit designs, plus it is affordable and easy to process.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 2L |
| Base Material | Rogers 4003C |
| Board Thickness(mm) | 1.0 |
| Max board size(mm) | 570*1200 |
| PCB size tolerance | ±0.3mm |
| Min. Hole Size | 0.3mm |
| Min. Line Width | 4mil |
| Copper Weight | 1oz |
| Surface Finish | ENIG |
| Certificate | UL, RoHS, ISO, and REACH |
Gold Plating Rogers 4003C PCB
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.What copper thicknesses do you offer as standard?
We typically offer copper thicknesses ranging from 0.5 oz to 5 oz. Custom thickness options are also available upon request to meet specific design needs.
2.What is Rogers PCB material?
Rogers PCB materials, manufactured by Rogers Corporation, are designed for high-frequency and high-speed applications.
3.What are the different types of Rogers PCB materials?
Some common types include Rogers 3003, Rogers 4003C, Rogers RT/Duroid 6002, Rogers RT/Duroid 5880, Rogers 4534, and Rogers 4350B.
4.What are the key properties of RO4003C material?
RO4003C material is characterized by a low dissipation factor of 0.0027 at 10 GHz, a stable dielectric constant of 3.38 ± 0.05, and a low coefficient of thermal expansion (CTE) in the Z-direction of 46 ppm/°C.
5.When to use Rogers materials?
Rogers material is suitable for high-frequency applications. Rogers Corporation offers different types of Rogers materials to match different operating frequencies.
