High Frequency PCB Communication Circuits
$98.90

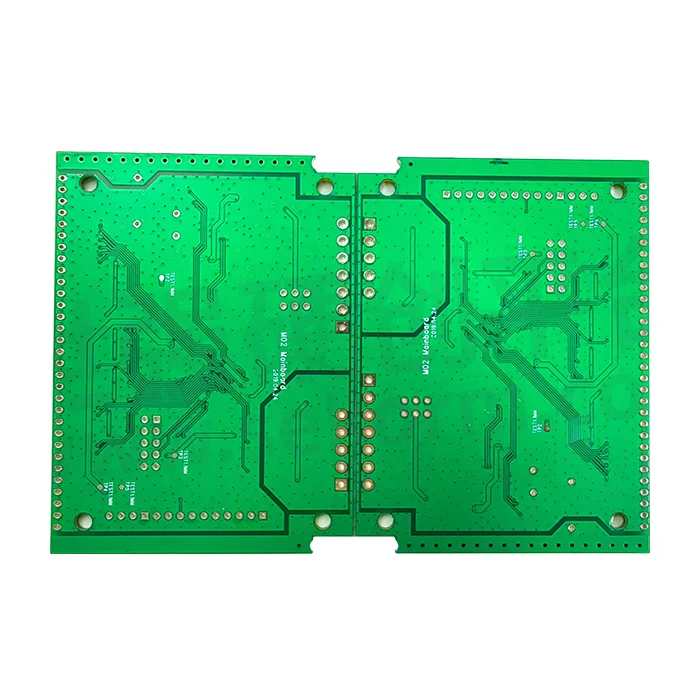

High frequency PCB communication circuits are electronic circuits that process high-frequency electromagnetic waves for information transfer, used in communications systems. These circuits are widely utilized in wireless communication systems, radar, satellite communications, routers, and radio frequency identification (RFID).
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 6L |
| Base Material | Rogers |
| Board Thickness(mm) | 1.6mm |
| Max board size(mm) | 570*670mm |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 4mil |
| Copper Weight | 1oz |
| Surface Finish | ENIG |
| Certificate | UL, IPC-6012, RoHS, ISO 9001, ISO14001 |
High Frequency PCB Communication Circuits
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1. What is your lead time?
1-2 days. We have our own warehouse and stock in large quantities.
2. Is international shipping available?
Yes, we ship worldwide and cooperate with DHL, FedEx, and other major logistics companies to deliver medical PCB safely and quickly to you.
3. Which material is best for 5G antennas?
Rogers(RO4835™) or Teflon(PTFE) for low dielectric loss and stable DK. Avoid using FR4 because it has high Df at mmWave, which may cause signal attenuation.
4. What should be prioritized in the design of high-frequency communication PCB?
High frequency PCBs for communication prioritize fast digital signaling and low latency because such PCBs are used in systems that need to manage, transfer, and handle numerous data quickly and effectively.
5. What signals does the HF communication PCB handle?
HF communication can cover shortwave (HF, 3-30 MHz), very high frequency (VHF, 30-300 MHz), ultra-high frequency (UHF, 300 MHz- 3 GHz), and even higher microwave and millimeter wave communication.
6. How does high-frequency communication PCB work in airplanes?
In airplanes with vibration and complex electromagnetic interference, HF PCB helps transfer various signals stably through low-loss Rogers, precise impedance, and adaptive signal processing technologies. High-quality HF PCB can achieve zero-error communication and meet the requirements of ARINC 653 and DO-160.
7. What’s the frequency range of the communication circuit?
Typically, the frequency of communication PCB ranges from 3 MHz to hundreds of GHz.
