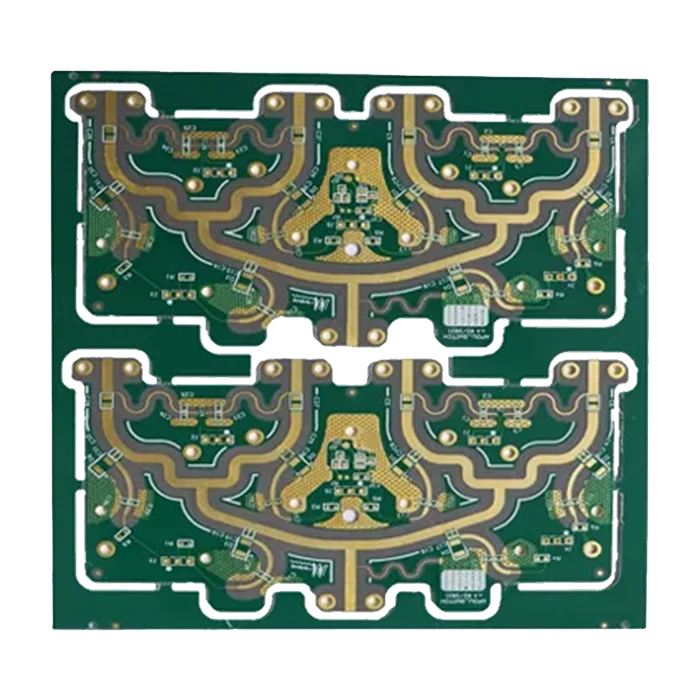

High frequency Rogers ceramic PCB
$78.60
RO4000 laminates (such as RO4003C, and RO4350B) are high-frequency PCB materials composed of ceramic-filled hydrocarbon resins reinforced with glass fabric. It provides high-frequency electrical performance close to PTFE while maintaining manufacturability and cost-effectiveness similar to FR4. This fills out the niche between FR-4 and PTEE, achieving an excellent balance between high-frequency performance and process compatibility.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 2L |
| Base Material | RO4003C |
| Board Thickness(mm) | 1.2 |
| Max board size(mm) | 400*400 |
| PCB size tolerance | ±0.3mm |
| Min. Hole Size | 0.3mm |
| Min. Line Width | 4mil |
| Copper Weight | 1oz |
| Surface Finish | Immersion Silver |
| Certificate | UL, RoHS, ISO, and REACH |
High frequency Rogers ceramic PCB
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.How do you ensure the quality of your PCBs?
We use multiple inspection methods such as AOI, X-ray inspection, in-circuit testing, functional testing, and flying probe testing to ensure the high quality and reliability of PCBs.
2.Do you assist in design review?
Of course! We provide design review services to help ensure your PCB designs are optimized for both manufacturability and performance.
3.What are the key benefits of RO4000 series materials?
RO4000 series materials provide several advantages for high-frequency PCB applications, including:
▪Support for higher frequency up to 40 GHz
▪Ensure reliable signal transmission
▪High Tg provides thermal stability
▪Fabrication-compatible with typical FR4 processes
4.What Rogers materials are ceramic-filled and suitable for high-frequency PCBs?
The ceramic-filled Rogers laminates include RO3003, RO3010, RO4350B, RO4003C, RT/duroid 6002, etc.
5.Are Rogers ceramic PCBs compatible with standard PCB fabrication processes?
Yes. Some materials like RO4350B and RO4003C are designed to be processed using standard FR4 fabrication techniques, reducing manufacturing complexity and cost.
