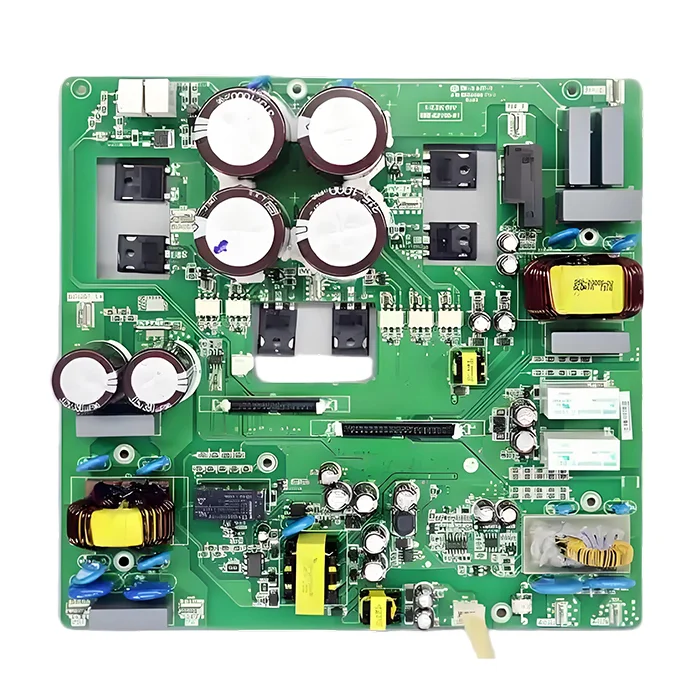

Inverter PCBA
$48.90
Inverter PCB is the platform for components to convert DC current into AC current. This board is important for solar inverters, moter drives, air conditioners, and other devices. MOKOPCB specializes in the PCB production and PCB assembly, including inverter PCB and inverter PCBA.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 6L |
| Base Material | FR4 |
| Board Thickness(mm) | 2.0mm |
| Max board size(mm) | 570*670mm |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 0.4mil |
| Copper Weight | 2oz |
| Surface Finish | ENIG |
| Certificate | UL, IPC-6012, RoHS, ISO 9001, ISO14001 |
Inverter PCBA
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1. What is the main function of an Inverter PCB?
The inverter PCB converts DC to AC, and controls power flow and switch operations to achieve efficient energy conversion and signal processing.
2. What materials are typically used for Inverter PCBs?
Onverter PCBs are usually made from FR4 because of its good mechanical strength and thermal resistance. For high-frequency applications, ceramic, polyimide, and metal cores like aluminum may also be used.
3. Why are multilayer PCBs preferred for inverter applications?
Multilayer inverter PCBs with a denser layout provide greater signal integrity, more routing space, improved thermal management, and enhanced EMI control.
4. What testing methods do you apply for the PCB?
We conduct AOI (Automated Optical Inspection), ICT (In-Circuit Testing), functional testing, thermal cycling, and high potentiation testing if needed.
5. What is the minimum trace width and spacing you support?
The minimum trace width and spacing we can fabricate is 4 mil.
