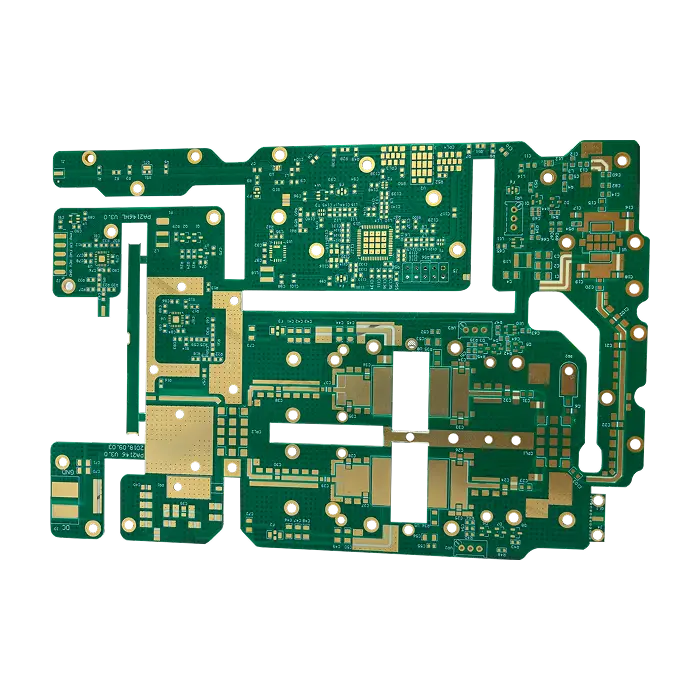

Rogers Gold Plating PCB Circuit Board
$89.00
Rogers gold plating PCB circuit board is specially designed for high-frequency applications. With excellent low signal loss and thermal management, this circuit board can also keep stable performance in a harsh environment. To enhance its reliability and electrical conductivity, Rogers PCB often plates with gold to provide better resistance to oxidation, low contact resistance, and reliable long-term performance.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 6L |
| Base Material | Rogers |
| Board Thickness(mm) | 2.0 |
| Max board size(mm) | 570*670 |
| PCB size tolerance | ±0.3mm |
| Min. Hole Size | 0.3mm |
| Min. Line Width | 5mil |
| Copper Weight | 2oz |
| Surface Finish | ENIG |
| Certificate | UL, RoHS, ISO, and REACH |
Rogers Gold Plating PCB Circuit Board
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.What other board materials do you offer?
Besides Rogers materials, MOKOPCB also offers a variety of other board materials, including standard FR-4, CEM-1, CEM-3, aluminum, and more.
2.What benefits does gold plating bring to Rogers gold plating PCB circuit boards?
Firstly, gold plating can offer excellent corrosion resistance, enhancing the circuit boards’ durability and reliability. Secondly, gold has excellent conductive properties, which is critical to high-frequency applications. Finally, gold plating can ensure low contact resistance.
3.What’s the difference between soft gold and hard gold in Rogers gold plating PCBs?
Soft gold and hard gold are two common types of gold plating, each serving different uses.
▪Soft gold offers excellent conductivity but has lower durability and hardness than hard gold.
▪Hard Gold is harder and more durable but is generally not as conductive as soft gold.
4.What are the main gold plating methods for Rogers gold plating PCB circuit boards?
There are two commonly used methods: Electroplating and Electroless Plating. In electroplating, gold is deposited to the surface of a circuit board by applying an electric current. It is recommended for applications in which the gold needs to be applied as a thick layer. Unlike electroplating, electroless plating deposits gold on a PCB by way of a chemical reaction. Most often, it is chosen for producing PCBs in small batches.
5.What is the difference between selective plating vs. full plating?
Selective electroplating is to plate gold on specific areas of the PCB, such as pads, vias, etc. Full plating is to evenly plate a layer of gold on the entire PCB surface.
