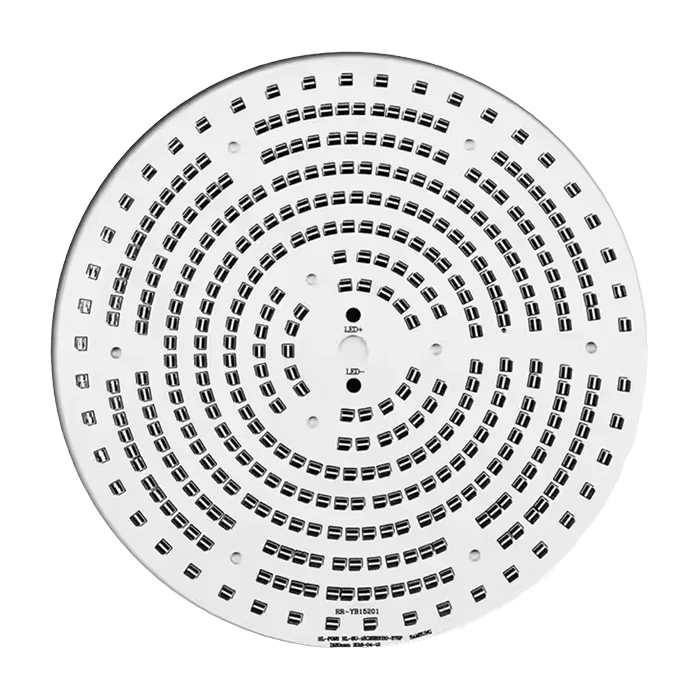

Two-sided aluminum PCB for compact design
$19.45
Two-sided aluminum PCB has two copper layers with an aluminum metal core in the middle, interconnected by plated through holes, and components can be mounted on both sides of the circuit board. The aluminum core allows the PCB to dissipate heat more effectively than traditional PCBs, such as FR-4 PCBs. As a leading double-sided aluminum PCB manufacturer, MOKOPCB is committed to providing high-quality, professional, and reliable PCB solutions.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 2L |
| Base Material | Aluminum |
| Board Thickness(mm) | 1.2 |
| Max board size(mm) | 570*1200 |
| PCB size tolerance | ±0.3mm |
| Min. Hole Size | 0.5mm |
| Min. Line Width | 5mil |
| Copper Weight | 3oz |
| Surface Finish | OSP |
| Certificate | UL, RoHS, ISO, and REACH |
Two-sided aluminum PCB for compact design
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1.What is your lead time?
It usually takes 1–3 days for prototypes. For mass production, expect 7–15 days, depending on the order quantity and the design complexity.
2.What are two-sided aluminum PCB dielectric materials?
The dielectric layer is usually made of thermally conductive epoxy resin or other specialized materials that transfer heat from the component to the aluminum substrate.
3.How thick is the general dielectric layer of a two-sided aluminum circuit board?
The thickness of the dielectric layer is generally 50μm to 200μm, but it also depends on the specific design requirements.
4.What temperature range can an aluminum PCB tolerate?
Aluminum PCBs have a wide operating temperature range, typically from -40°C to 200°C.
5.What is the difference between copper PCB vs. aluminum PCB?
Copper circuit boards use copper as the base material, while aluminum circuit boards use aluminum. Both PCBs have good thermal management, but aluminum PCBs are better.
