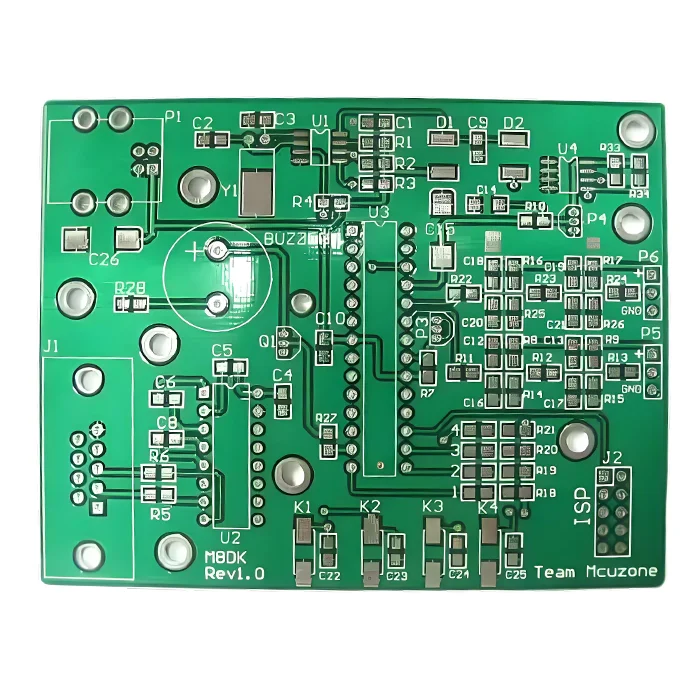

Wholesale FR4 Tg130 PCB
$28.50
MOKOPCB provides affordable wholesale FR4 Tg130 PCB for consumer electronics, LED lightings, IoT devices, and automotive control modules. The Tg130 substrate with ≥ 320°C Td has sound thermal stability, mechanical strength, and chemical resistance.
Shipping fee and delivery date to be negotiated. Send inquiry for more details.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Claim a refund if your order is missing or arrives with product issues, our support team would deal with your refund within 24 hours.
| Layer Counts | 4L |
| Base Material | FR4 |
| Board Thickness(mm) | 1.6mm |
| Max board size(mm) | 570*850mm |
| PCB size tolerance | ±0.2mm |
| Min. Hole Size | 0.15mm |
| Min. Line Width | 4mil |
| Copper Weight | 1oz |
| Surface Finish | HASL-LF |
| Certificate | ISO9001, ISO13485, IPC610, UL |
Wholesale FR4 Tg130 PCB
| 5 star | 0% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
Questions & Answers
1. What is the shipping port?
We ship the goods via the Port of Hong Kong or Shenzhen.
2. Why choose HASL-LF finish?
HASL-LF(Hot Air Solder Leveling-Lead Free) is a common surface with good solderability, reliability, and cost-effectiveness. Unlike traditional HASL, HASL-LF complies with RoHS regulations and lead-free processes.
3. Can I get a Tg130 FR4 PCB sample?
Yes, we can offer a sample based on your requirements, and welcome to contact us!
4. Can Tg130 FR4 handle a heavy copper PCB?
Yes, but meed precautions. Tg130 FR4 can support heavy copper PCBs up to 3/4 oz, and we do not recommend using higher oz. That’s because Tg130 FR4 has a relatively low heat resistance, which may increase thermal and mechanical risks. If you want the PCB to undertake high power, consider using a higher Tg material like Tg170 FR4.
5. Can I customize a 6-layer Tg130 PCB?
Yes, we can achieve it, but we don’t recommend it for >4 layers for high-reliability applications because it may increase the risk of delamination due to CTE mismatch.
6. Why choose Tg130 over higher-Tg materials?
Compared to higher-Tg PCBs, Tg130 boards, especially those simple boards, are easily available for most consumer electronics at a more affordable price.
7. What’s the max temperature it can handle?
It can continuously work up to 105°C and survive up to 240°C in the short term.
